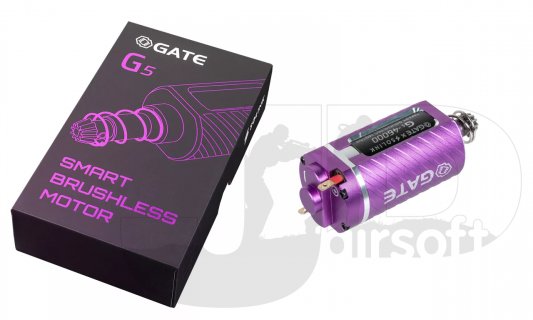

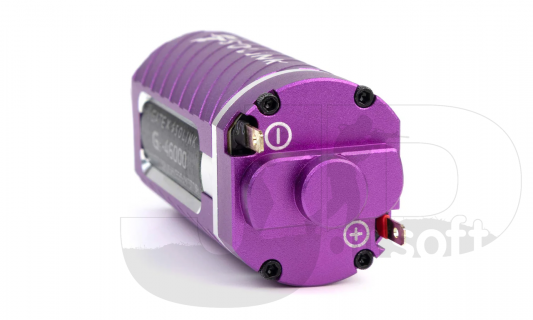

GATE G5 Brushless Programmable Motor 10k/46K / Short

GATE G5™ Brushless Motor and ASTER II Bluetooth® / TITAN II Bluetooth® gives you total control of your replica.
The GCS app offers you the option to control your brushless motor speed and torque even during gameplay.

Revolutionary G5 Smart Brushless Motor – the world’s first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®! Thanks to GCS app you get precise adjustment of speed ranging from 10k to 46k RPM.
Torque adjustment gives you the ability to adjust torque to your gearbox configuration. Soft Start extends the life of the gearbox’s internal parts, including the gears, meanwhile, Fast Start gives you the quickest possible trigger reaction.

You can change settings even during gameplay, without an additional programmer. What's also unique is that the motor has a built-in anti-reversal mechanism, significantly improving the gearbox's performance. Say goodbye to the problematic standard anti-reversal latches and enjoy quieter operation and even more accurate pre-cocking adjustments. The motor's extremely fast startup ensures an instantaneous trigger response, while its high efficiency reduces battery consumption and motor temperature. High torque enables compatibility with the most demanding replica configurations, and the adjustable rotational speed ensures perfect adaptation to almost any gearbox configuration.

The G5 Smart Brushless Motor is an excellent addition to the GATE ecosystem. It communicates seamlessly with the ASTER II and TITAN II ensuring perfect synergy.

What distinguishes G5 Brushless Motor from the competition?

The world's first brushless motor programmable via GCS mobile app exclusively with GATE TITAN II or ASTER II Bluetooth®
Integrated anti-reversal mechanism ensures quieter operation and ultra-precise pre-cocking
Extremely high torque, reaching up to 2334 g-cm
Very wide RPM range: 10 000 - 46 000 RPM
Highly durable motor connectors
Integrated motor shaft manufactured using CNC technology
Exceptionally effective braking system
D-type pinion gear
Specification of GATE G5 Brushless Motor for 11.1V
AT NO LOAD:

SPEED - 45 800 RPM
CURRENT - 3.2A

AT MAXIMUM EFFICIENCY:

EFFICIENCY - 75.9%
SPEED - 40 987 RPM
TORQUE - 500 G/CM
CURRENT - 24.9 A
OUTPUT - 205 WATTS

AT MAXIMUM OUTPUT:

EFFICIENCY - 48.4%
SPEED - 22 950 RPM
TORQUE - 2334 G/CM
CURRENT - 105 A
OUTPUT - 519 WATTS

Supply Voltage Range: 6 - 16.8 V

Dimensions (Length x Width x Height)
88.5 x 29.5 x 25 mm

Finished Product Weight: 141 g
